SPECIFICATIONS
After-sales Service: Repair
Custom software: APK&software build-in,Language
Hard Drive Type: SSD+HDD
Processor Type: Intel Core I7
Video Memory: With the main memory
Video Memory Type: GDDR4
Warranty(Year): 1-Year
brand name: Other
chipset type: Hexa Core
graphics card chipset: Integrated Card
hdd rotation speed: SSD
model number: GM1
mouse & keyboard: No
operating system: Windows 11
place of origin: Guangdong, China
power: 10W
private mold: No
processor core: Dual Core
processor type: Intel Celeron
products status: New
ram type: DDR4
use: For Gaming
video card: Integrated Card
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:18px;padding:5px 10px;width:74px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:18px;padding:5px 10px;width:135px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-4{min-height:18px;padding:5px 10px;width:53px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:81px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:18px;padding:5px 10px;width:28px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:251px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{vertical-align:top}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-12{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-13{margin-bottom:0}#detail_decorate_root .magic-14{position:relative;width:100%}#detail_decorate_root .magic-15{width:750px;height:847.5px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-16{position:relative;left:0;top:0;width:750px;height:847.5px}#detail_decorate_root .magic-17{width:750px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:577.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:577.5px}#detail_decorate_root .magic-20{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-21{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-22{width:245px;height:183.75px;overflow:hidden}#detail_decorate_root .magic-23{position:relative;left:0;top:0;width:245px;height:183.75px}#detail_decorate_root .magic-24{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-25{width:245px;height:183px;overflow:hidden}#detail_decorate_root .magic-26{position:relative;left:0;top:0;width:248.9795918367347px;height:183px}#detail_decorate_root .magic-27{position:relative;left:0;top:0;width:245px;height:189.56875px}#detail_decorate_root .magic-28{width:245px;height:137.50625px;overflow:hidden}#detail_decorate_root .magic-29{position:relative;left:0;top:0;width:245px;height:137.50625px}#detail_decorate_root .magic-30{width:245px;height:137px;overflow:hidden}
Processors | Cores & Threads | L3 Cache | Max Turbo Frequency | TDP | Graphics |
Core i5-1235U | 10 cores, 12 threads | 12M | 4.40 GHz | 15W | Intel Iris Xe Graphics max 1.20GHz |
Core i7-1255U | 10 cores, 12 threads | 12M | 4.70 GHz | 15W | Intel Iris Xe Graphics max 1.25GHz |
Core i7-1265U | 10 cores, 12 threads | 12M | 4.80 GHz | 15W | Intel Iris Xe Graphics max 1.25GHz |
Core i5-1335U | 10 cores, 12 threads | 12M | 4.60 GHz | 15W | Intel Iris Xe Graphics max 1.25GHz |
Core i7-1355U | 10 cores, 12 threads | 12M | 5.00 GHz | 15W | Intel Iris Xe Graphics max 1.30GHz |

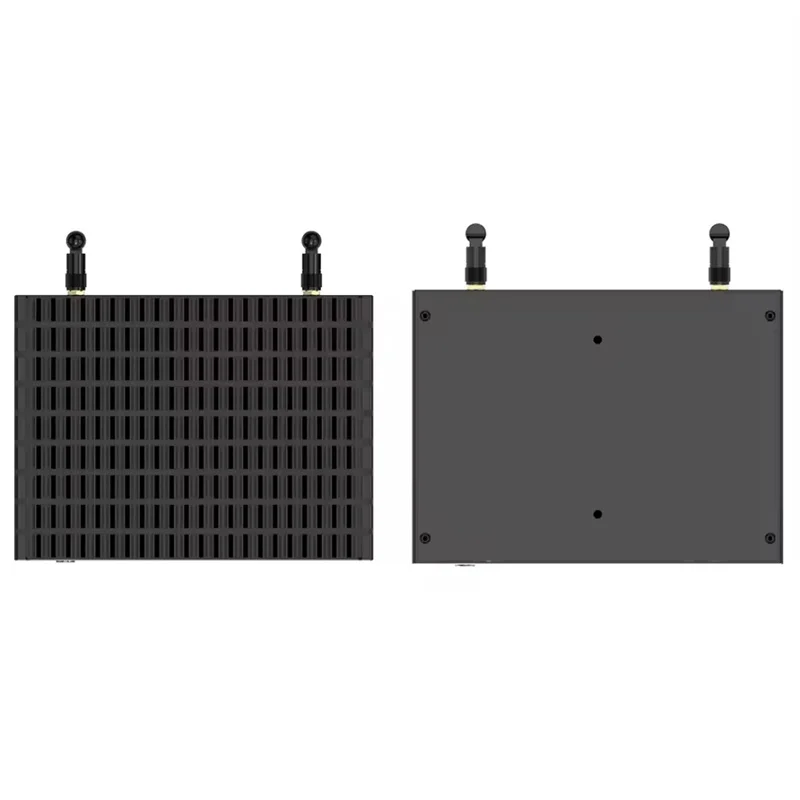

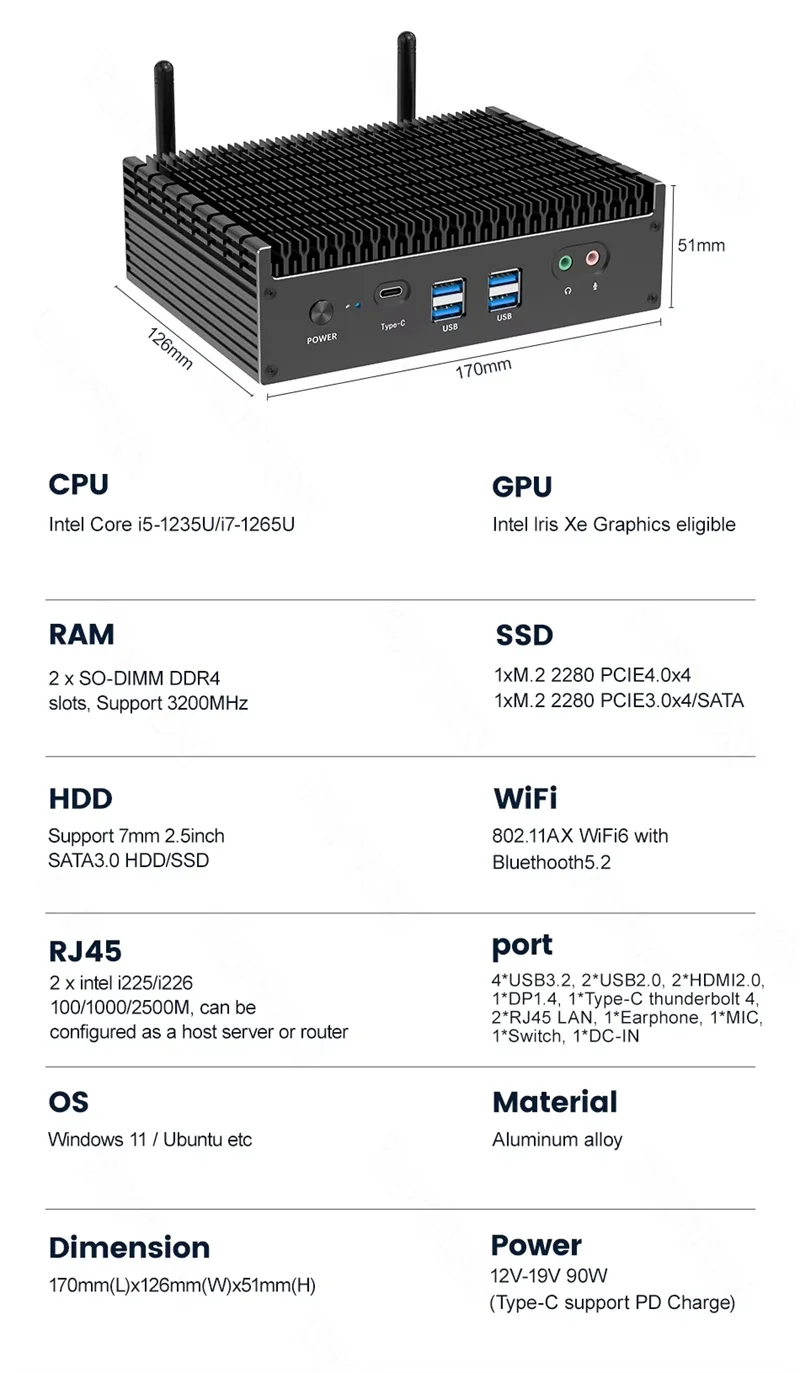

Dimension:170mm(L)x126mm(W)x51mm(H)

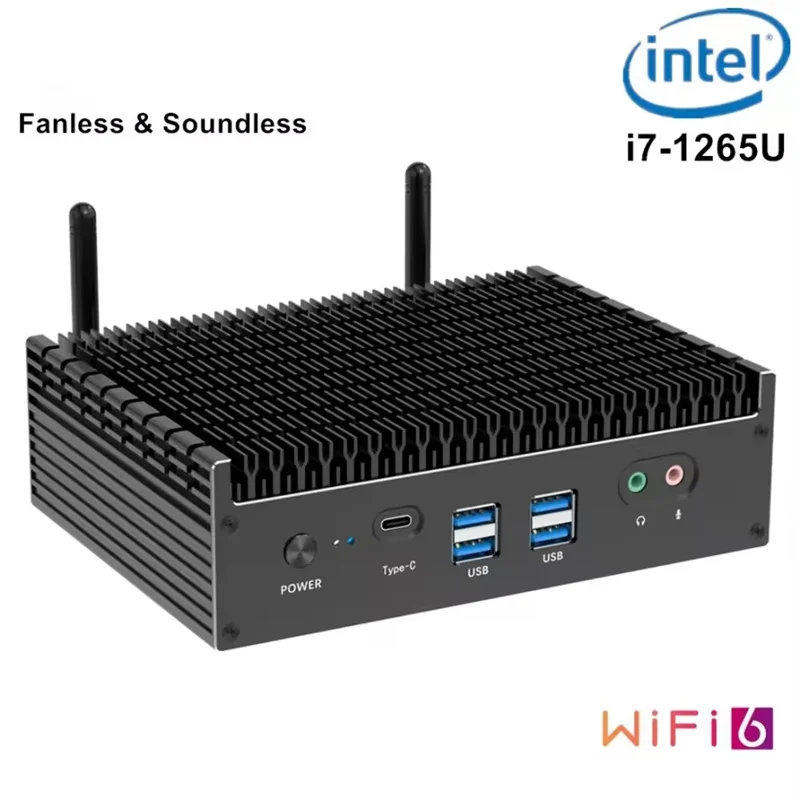

CPU: Intel Core i5-1235U/i7-1255U/i7-1265U/i5-1335U/i7-1355U
GPU: Intel Iris Xe Graphics (request dual channel DDR4 memory)
Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD: 1xM.2 2280 PCIE4.0x4, 1xM.2 2280 PCIE3.0x4/SATA
HDD: Support 2.5inch 7mm HDD/SSD

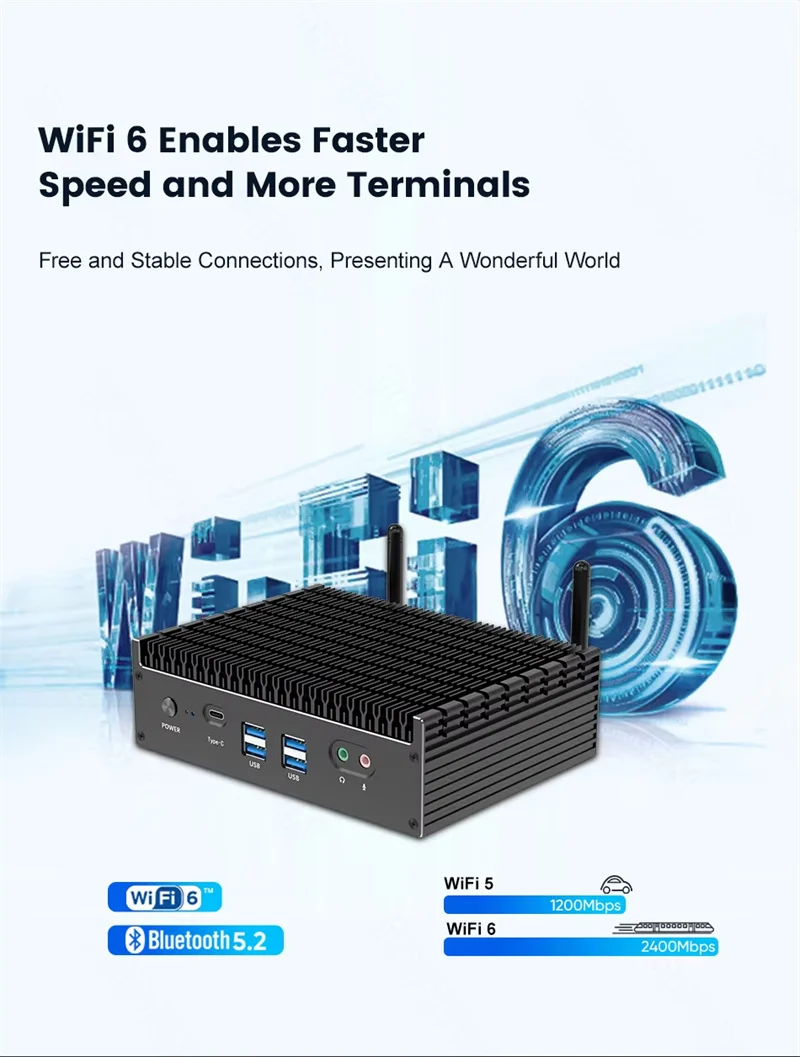

WiFi: 802.11AX WiFi6 with Bluethooth5.2
RJ45: 2 x intel i225/i226 100/1000/2500M, can be configured as a host server or router

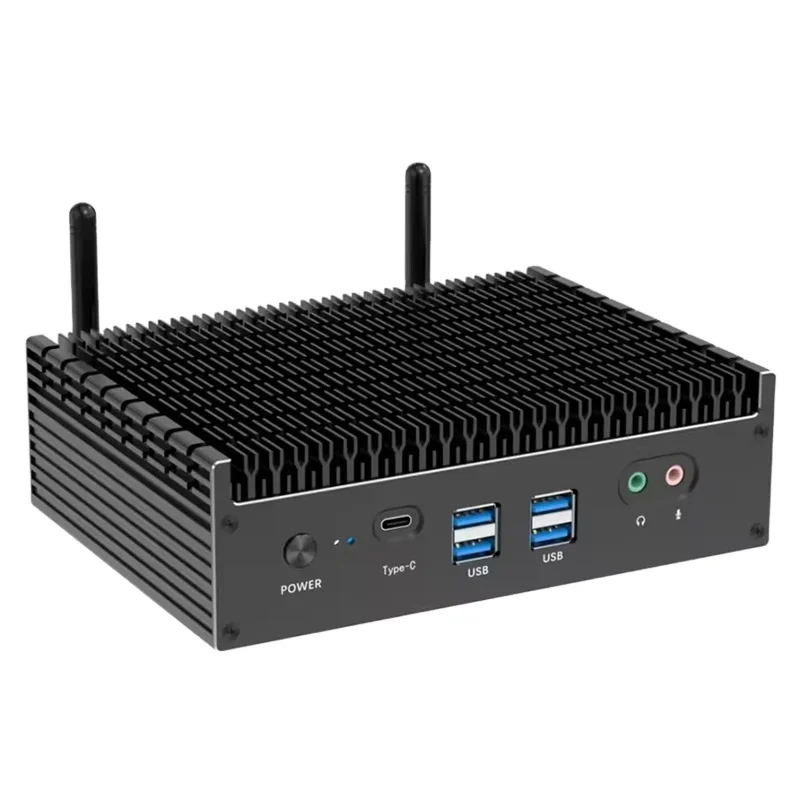

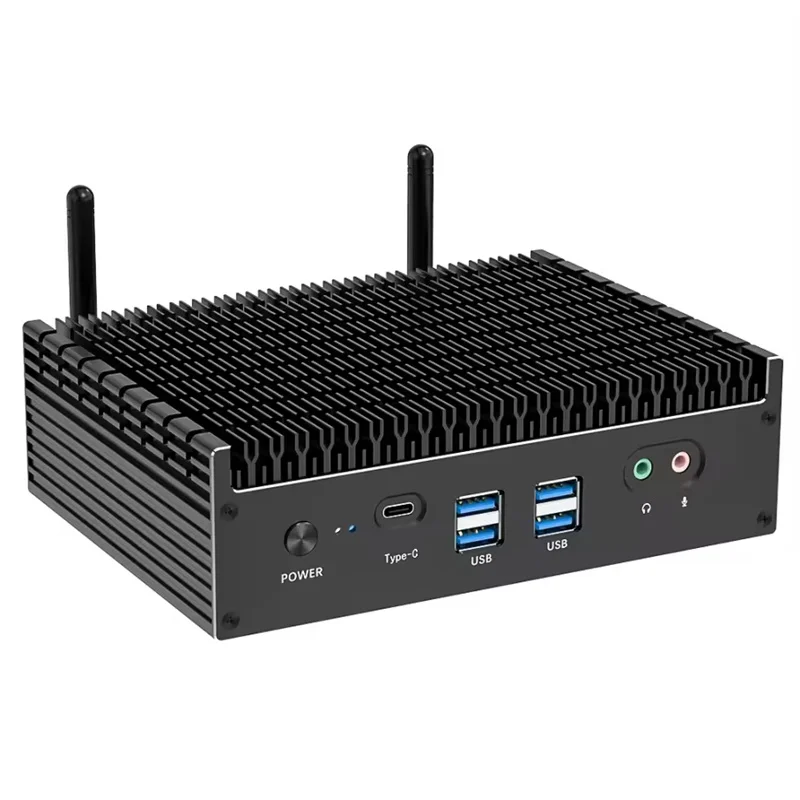

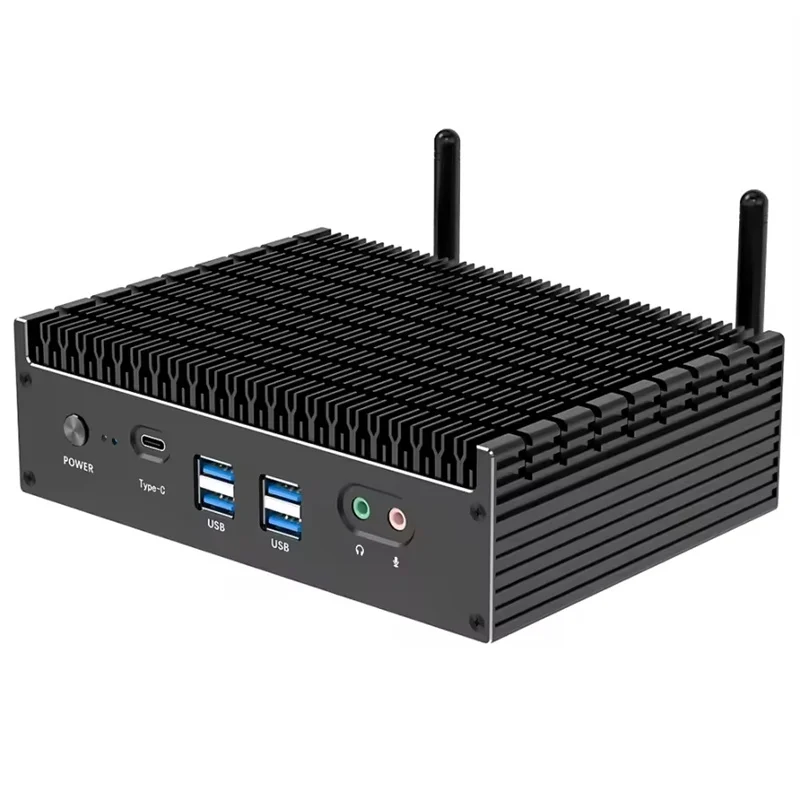

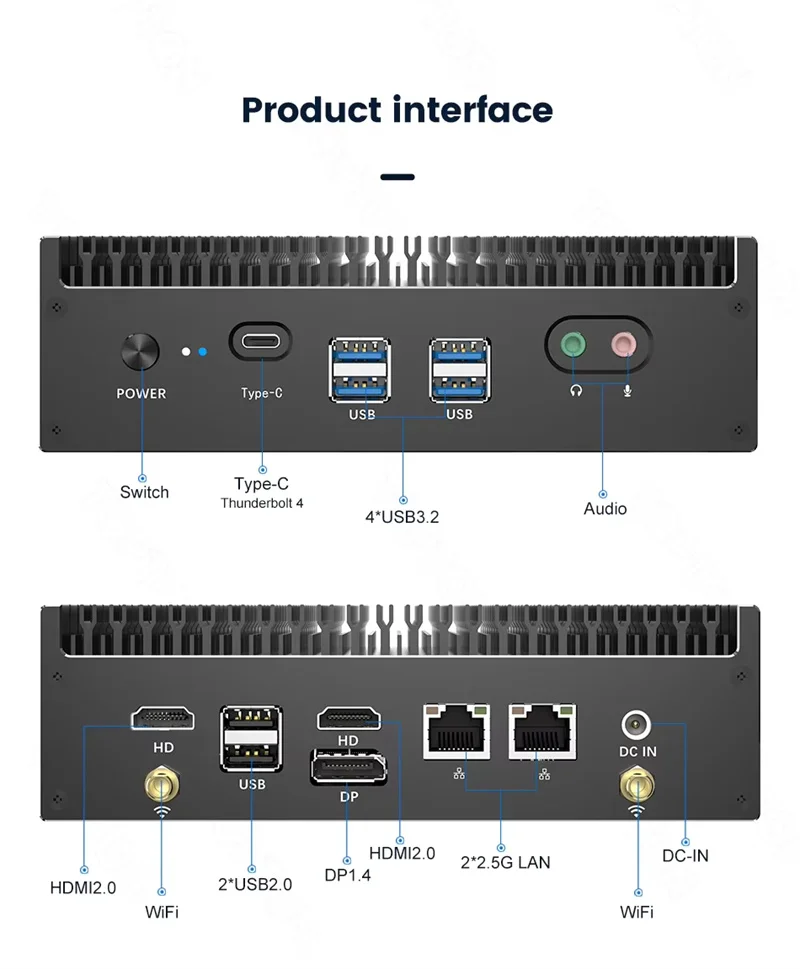

Front I/O: 4 x USB 3.2, 1 x Type-C thunderbolt 4(support eGPU, PD charge), 1 x Earphone, 1 x MIC, 1 x Switch
Rear I/O: 2 x USB 2.0, 2 x HDMI2.0, 1 x DP1.4, 2 x RJ45 LAN, 1 x DC-IN
OS: Windows 11 / Ubuntu etc
Power: 19V 4.74A
BIOS: AMI UEFI, support Auto power on, Wake on Lan, PXE, RTC etcWhat's in the package
1xMini PC
1xPower supply
1xPower cable
1xSATA cable
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
ASICBIZ Co., Ltd is a company that specializes in developing liquid cooling equipment. We provide oil cooling and hydro cooling solutions. Our vision is to make computing infrastructure more EFFICIENT, SUSTAINABLE, and ROBUST. Leveraging its advanced liquid cooling technology, both ultimate efficiency.
1. Raw Material
Raw Material,CPU, Ram, Storage, Battery, Wifi etc

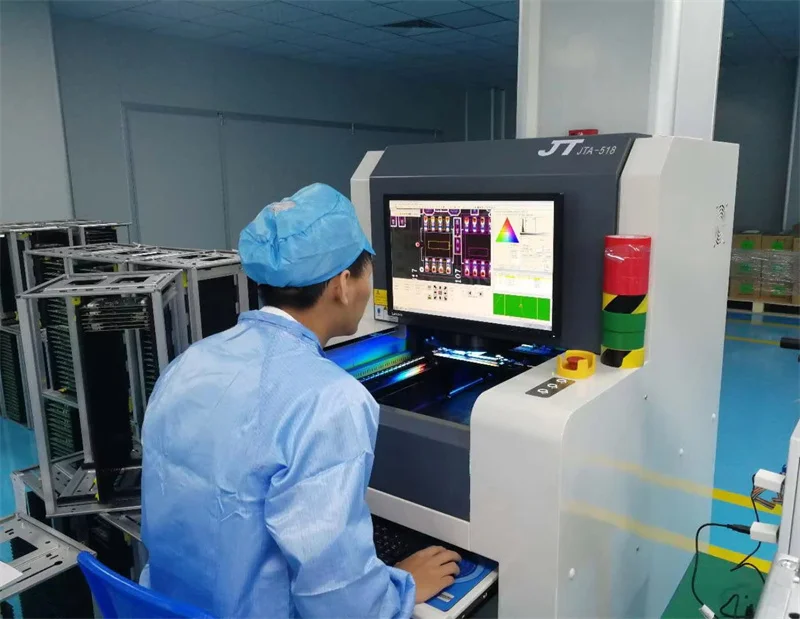

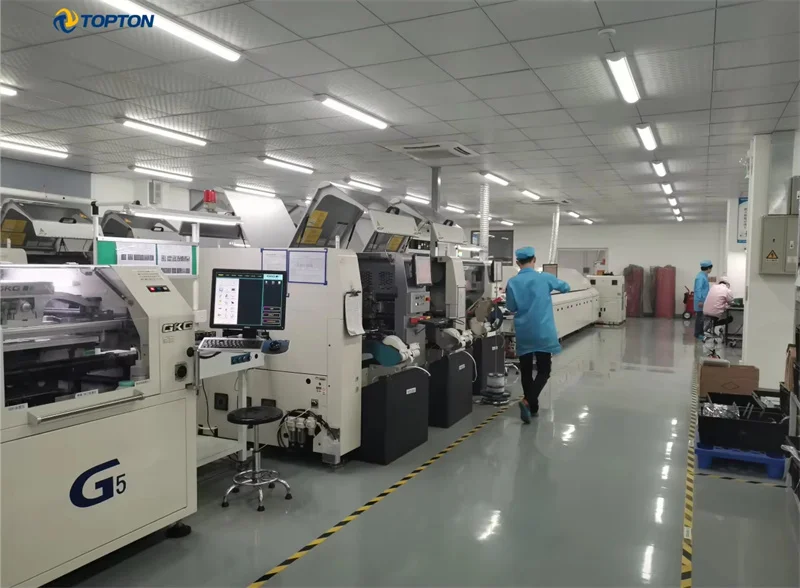

2.Professional SMT process
Automatic SMT production line + 8 inspection processes
3. Function Test
Every PC must test for at least 2 hours

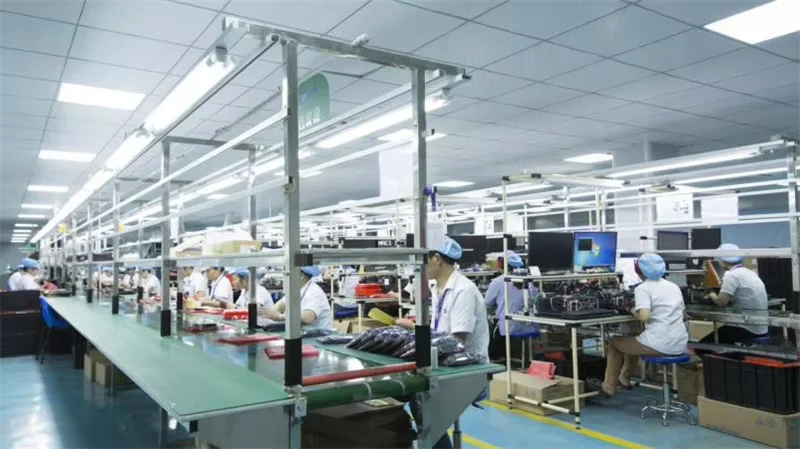

4. Assembly
Produce 500+ Computer every day

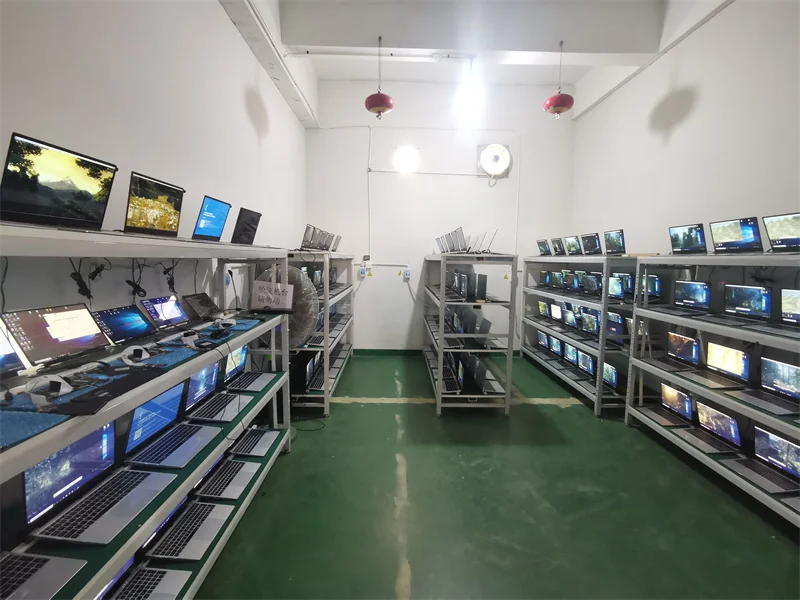

5. Aging Test
Long time aging test(3D Mark,AIDA64) to ensure high-quality

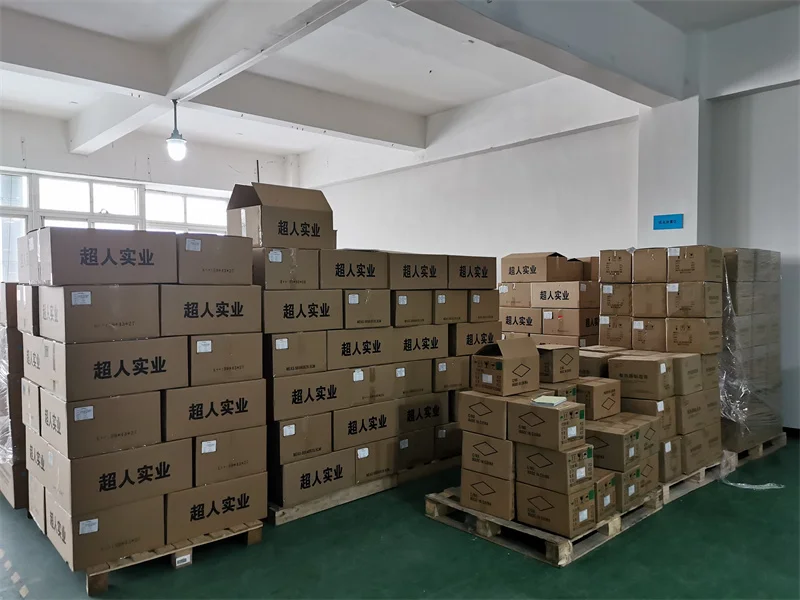

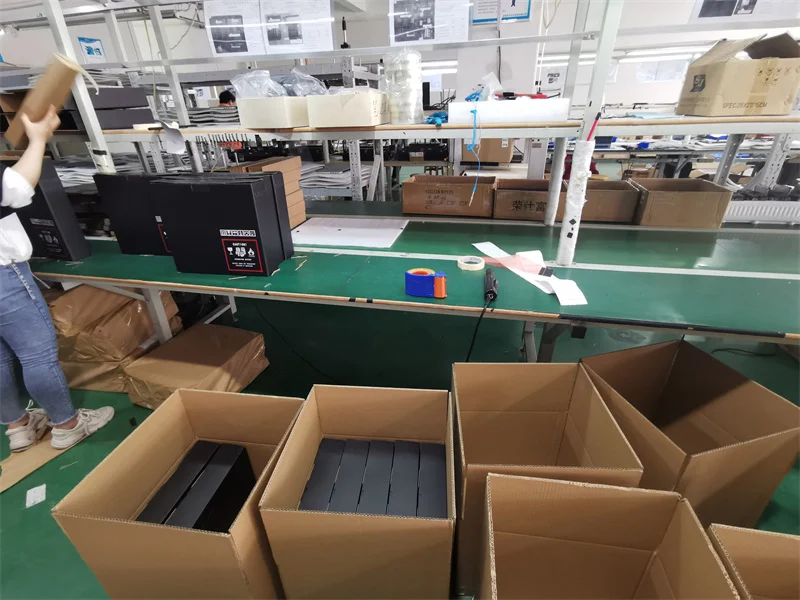

6. Package
Safety packaging to ship ( Accept customized packaging )
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we could print your logo on the pc for free !
Pls contact me for logo printing 😉
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test.
Q4. What is the lead time of your products?
Re: Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5. How will you deliver my goods to me?
Re: We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to
enable our customers to get their goods rapidly.
Q6.What's the warranty?
Re: 3 year warranty ! After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories)
