SPECIFICATIONS
CPU: IntelJ1900/2.00GHz processor, TDP 10W
Com port: 1* CISCO RS232 COM port
Memory: 1*SODDR3L/3.5V 1600/1333 MHZ support up to 8GB
Network: 6*I210 Gigabit Ethernet
Operating System: Windows10,windows11,Linux
Power supply: Adopts DC 12V power supply
Service: OEM,ODM
Storage: 1*Sata3.0 1*Msata
USB: 4* USB2.0 port,2* USB 2.0 port, 2*5Pin
brand name: evrtech
place of origin: Guangdong, China
products status: Stock

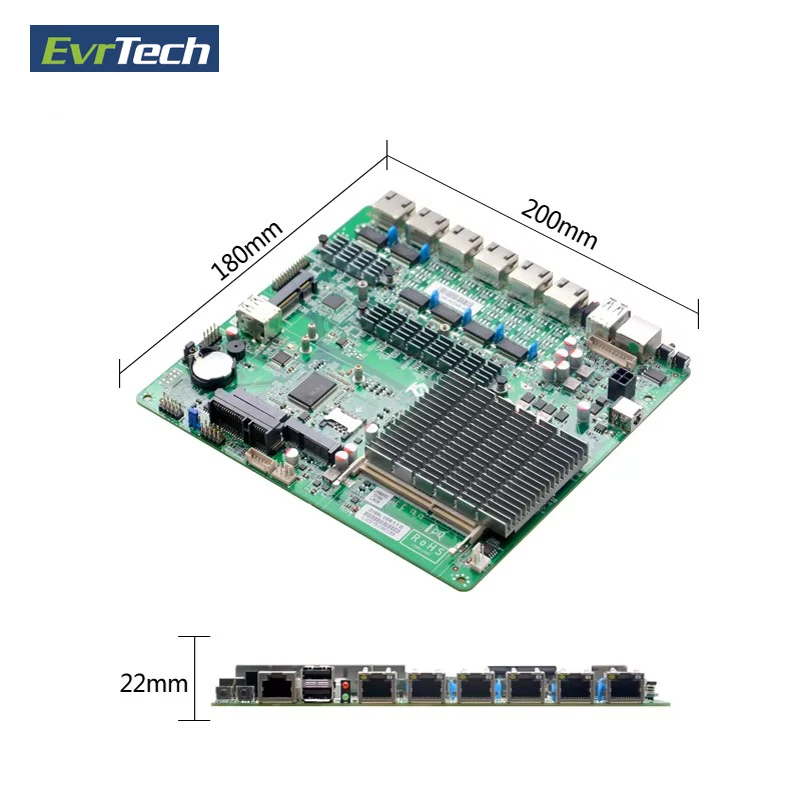

size: 200*180mm
type: Embedded Industrial Motherboard
Itx inte J1900 Fanless VGA display 6 RJ45 LAN Port Ethernet Pfsense server firewall scheda madre industrial Motherboard
Features of Our motherboard
1. Intel® Celeron J1900/2.00GHz processor, TDP 10W
2. 1*SODDR3L/3.5V 1600/1333 MHZ support up to 8GB
3.1*VGA 6*USB2.0
4.1* CISCO RS232 COM port
5. 6*I210 Gigabit Ethernet
6. 1*Sata2.0 1*Msata 1* Mini PCIE
7.OS Support: Windows 7/Windows 10/Linux
8.SIZE :200mm * 180mm* 22mm
Informazion order
|
NO. |
Model |
Processor |
Frequency |
Menmory |
SATA |
MSATA |
VGA |
P/S |
LAN |
USB |
COM |
Power |
|
1 |
YB-ITXJ19006LS1C |
2.0mhz |
1 |
1 |
1 |
1 |
6 |
6 |
2 |
Specification of our motherboar
|
Chipset |
Model |
YB-ITXJ19006LS1C |
|
Processor |
Intel® Celeron J1900/2.00GHz processor, TDP 10W |
|
|
Chipset |
Intel® Bay trail SOC |
|
|
Memory |
RAM |
1*SODDR3L/3.5V 1600/1333 MHZ support up to 8GB |
|
Storage |
SATA |
1* 7pin SATA2.0 hard disk interface, transmission rate up to 3Gbps |
|
Msata |
1* MSATA slot, support Intel protocol SSD, transfer rate up to 3Gbps |
|
|
VGA |
1* VGA, the highest resolution supported is 1920×1080@60Hz |
|
|
LAN |
LAN |
6*I210 Gigabit Ethernet, support Wake On LAN ,PXE function |
|
USB |
USB |
4* USB2.0 port,2* USB 2.0 port, 2*5Pin |
|
COM |
COM |
1* CISCO RS232 COM port |
|
GPIO |
GPIO |
Support 4 input/output GPIO |
|
BIOS |
BIOS |
64Mb Flash ROM |
|
PS/2 |
PS/2 |
1*PS/2 port 1*6PIN |
|
Mini PCIE |
Mini PCIE |
1* Mini PCIE slot, support WIFI , 4G module |
|
Watchdog |
Watchdog |
Support hardware reset function (L256,0~255 seconds) |
|
Fan connector |
Fan connector |
Fanless cooling, reserve 1*4pin CPU fan connector,1* 3pin system fan connector |
|
Power |
Power Supply |
Adopt DC 12V power supply |
|
Working Environment |
Working Temp. |
-20℃ ~ +60℃ |
|
Storage Temp. |
-20℃ ~ +70℃ |
|
|
Working humidity |
0% ~ 90% Relative humidity, no condensation |
|
|
Storage humidity |
0% ~ 90% Relative humidity, no condensation |
|
|
OS |
OS |
Windows 7/Windows 10/Linux |
|
Dimension |
Size |
200mm * 180mm * 22mm |
|
Weight |
About 500G |
1.Delivery Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box,
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it ,but we will charge for the parts that need to change.
Q1: Can you put Our brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 1-3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There’s no problem with running the device 24/7. I’ve done it for about a month and have had no problems. Just set your monitor to sleep when you’re not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
“Quality assurance” is our eternal pursuit and promise. Welcome your any inquiry about
our products. We will try our best to help you.
