SPECIFICATIONS
Brand Name: QiuzAim
Cooler Type: Tower
Model Number: QZ-1260
Power Interface: 3pin/4pin
Blade Quantity: 9
Fan Speed: 800 – 1500
TDP: 155
Supported CPU: LGA 2011
Supported CPU: LGA 2066
Supported CPU: Socket FM1
Supported CPU: Socket FM2
Supported CPU: Socket AM3
Supported CPU: Socket AM5
Supported CPU: Socket AM2
Supported CPU: Socket AM2+
Supported CPU: Socket FM2+
Supported CPU: Socket AM3+
Supported CPU: Socket FM2/FM2+
Supported CPU: AM4
Heatpipes: 6
Fan Life: 50000 hrs
Air Volume: 48
Bearing: Fluid Bearing
Series: QZ-1260
Noise: 22dBA
Lines: 3Pin or 4Pin
Origin: Mainland China
Fan Size: 120
Package: YES
Product brand: QIUzAim
Product name: CPU cooler fan
Product size: 120 (L) * 73(W) * 150 (H) mm
Fan size: 120 * 120 * 25mm
Heat pipe specification: 6mm * 6 pieces
Fan speed: 800-1500rpm
Number of fans: 1 fan
Noise control: 22dB
Air volume: 48CFM (MAX)
Fan bearings: hydraulic bearings
Working voltage: DC 12V
Process materials: copper and aluminum
Working life: 50000 hours
Interface type: 3Pin or 4Pin

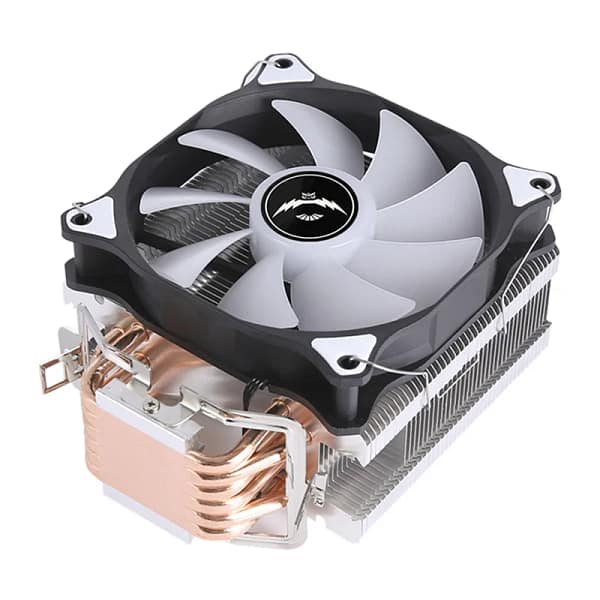

120mm Fan Pure aluminum base combined with 6 pure copper heat pipes for efficient heat dissipation. Solve high temperature issues and make your computer smoother. Super silent fan. Hydraulic bearings reduce friction resistance and effectively reduce noise. Multi platform design, easy installation.
Note:
Due to manual measurement, different measurement methods and tools, there may be slight dimensional deviations.
Due to differences in lighting, angle, and display, images may not reflect the actual color of the item.
The following is an installation tutorial video for this product, hoping to be helpful to you. The products installed in the video are for reference only, but the installation method is the same.
Regarding the selection of interface types
3Pin or 4Pin interfaces are universal and can be installed without worrying about interface types
Fixed speed type: 3Pin fan with fixed speed, high air volume, and good heat dissipation,But there will be relatively slight wind sounds
Temperature control board: The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which can save energy and mute sound. Extend lifespan! (The motherboard needs to support and enable the PWM speed regulation function, which is basically available on all motherboards)
Socket:
For Intel: LGA2011 x79 x99 e5 x299 2099 2066
For AMD: AM4/AM2+/AM2/AM3+/FM1/FM2/FM2+
(For AMD, the original bracket on the motherboard needs to be retained, just attach the cooler.)
Packaging included in a single cooler:
1x CPU cooler fan
1x cooler bracket
1x thermal conductive silicone grease
