SPECIFICATIONS
Application: Desktop,Workstation
Audio Channels: 5.1
Back I/O Ports: 1x RJ45,VGA(D-Sub)
Brand Name: jingsha
Chipset: Intel B75
Chipset Manufacturer: Intel
Choice: yes
Hign-concerned Chemical: None
M. 2 Interface 1: NVME M.2
Maximum Ram Capacity: 16 GB
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 1
Number of PCIe x 16: 1
Number of SATA Ports: 4
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI – E standards: PCI – E 3.0
Package: Yes
Processor compatibility: Intel Core i3
RAID Supported: No
Socket Type: LGA 1155
Special Function: None
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR3
Support USB Type: USB 2.0,USB 3.0
Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Workstation
With CPU: Yes
semi_Choice: yes

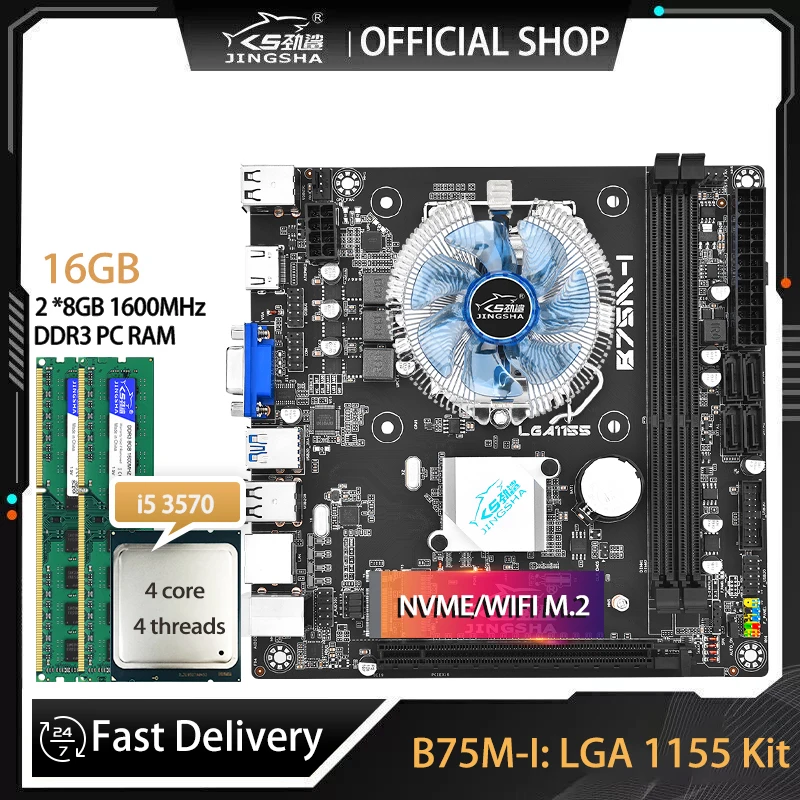

B75M ITX Motherboard Kit with Core i5 3570 processor and 16GB DDR3 Memory +CPU Fan integrated GPU placa mae LGA 1155 Mainboard
100% professional pre shipment test
Support desktop memory
Support WIFI M.2+NVME M.2 interface
High compatibility brings a higher experience

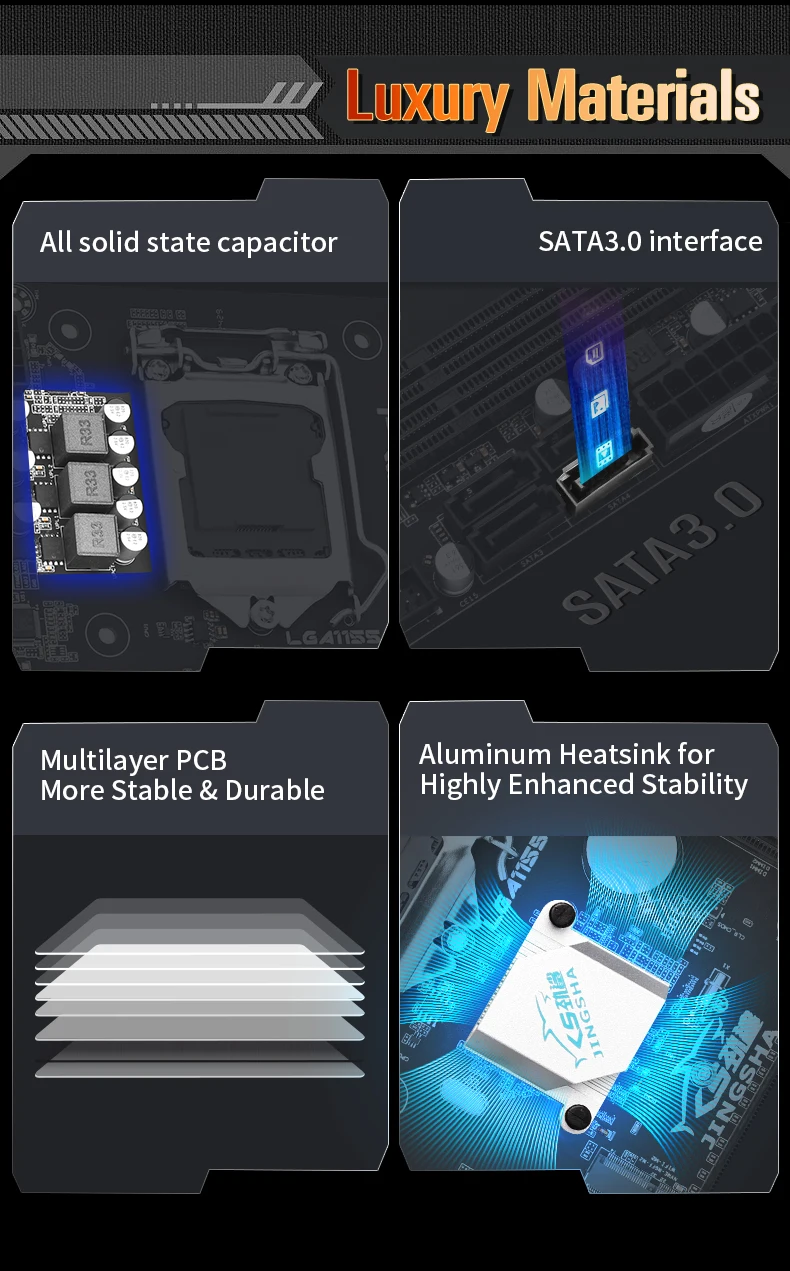

All solid capacitors, fine workmanship, professional and stable
The power socket has an 4-pin, 8-pin power connector

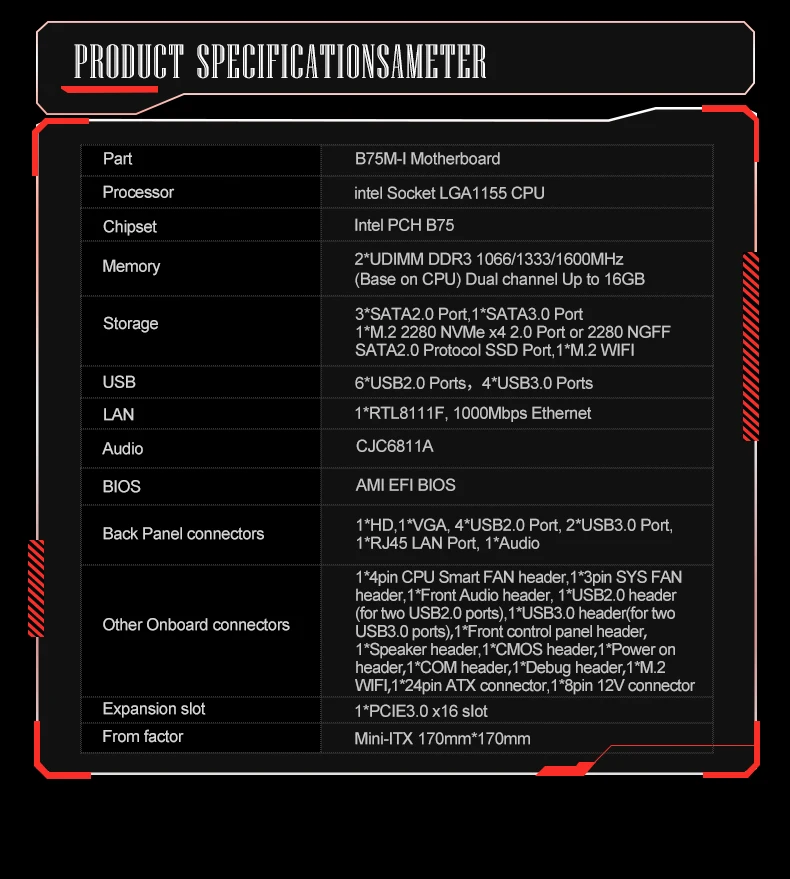

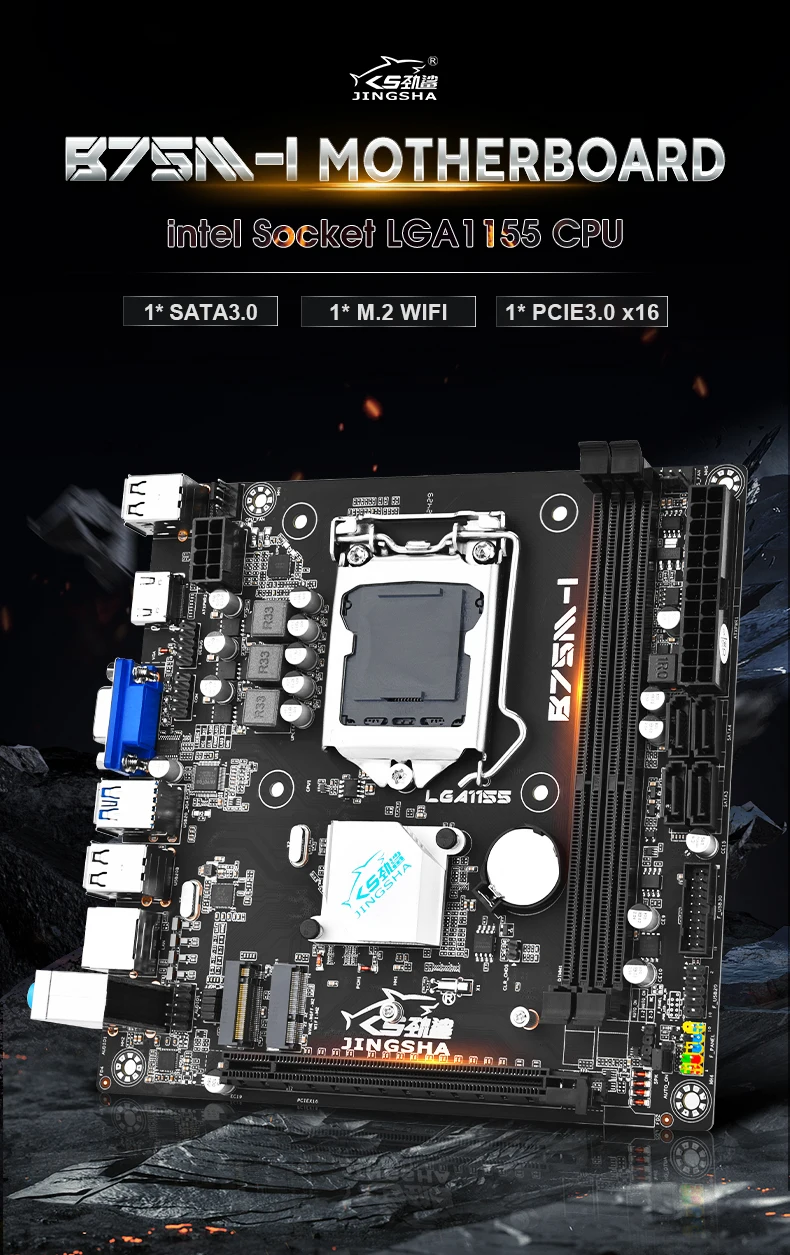

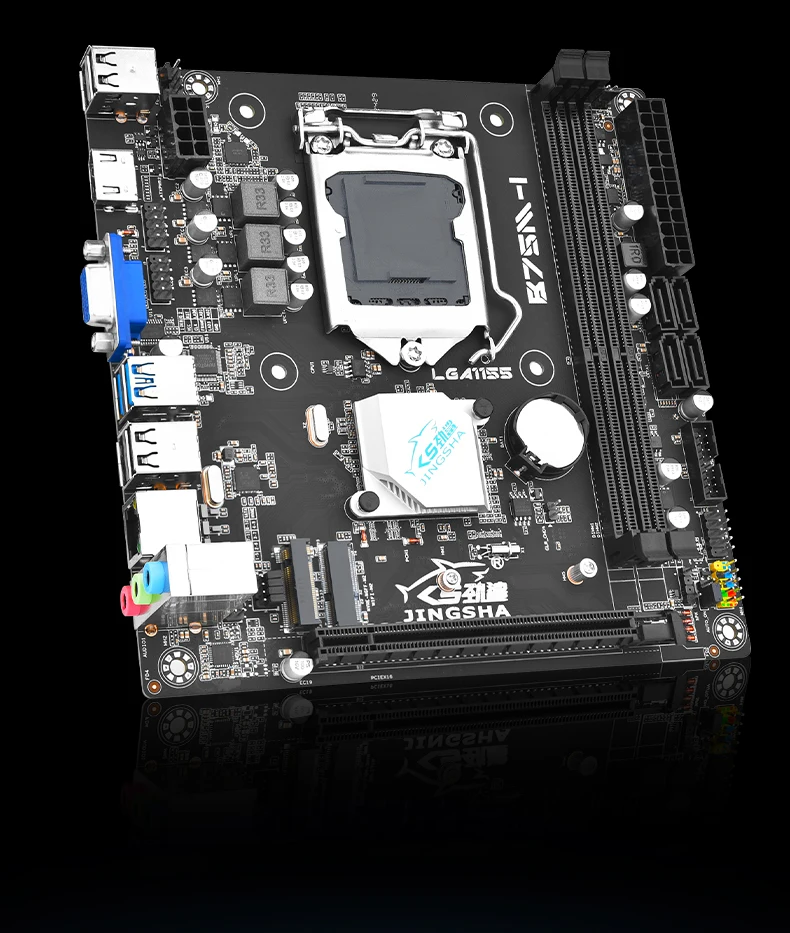

Part#B75M-I Motherboard
Processor：Intel Socket LGA1155 CPU
Chipset：Intel PCH B75
Display：1*HD, 1*VGA (Support 1920×1080/60 Hz)
Memory：2*UDIMM DDR3 1066/1333/1600MHz(Base on CPU) ,Dual channel，Up to 16GB
Storage：3*SATA2.0 Port,1*SATA 3.0, 1*M.2 2280 NVMe x4 2.0 Port or M.2 2280 NGFF SATA2.0 Protocol SSD Port.1*M.2 WIFI
USB：6*USB2.0 Ports, 4*USB3.0 Ports
LAN：1*RTL8111H, 1000Mbps Ethernet
Audio：ALC897 7.1 Channel Audio Chip
BIOS：AMI EFI BIOS

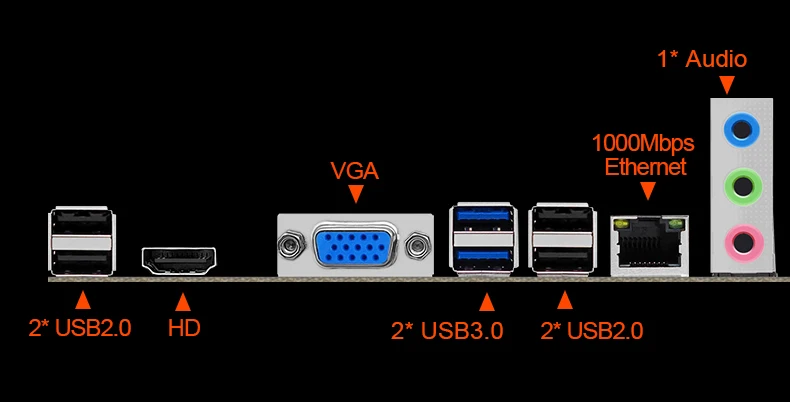

Back Panel connectors：
1*HD, 1*VGA, 2*USB3.0 Port, 4*USB2.0 Port,
1*RJ45 LAN Port,
1*Audio 3-in-1(L .ine outLine-in/MIC),
1*PS/2 Keyboard, 1*PS/2 Mouse

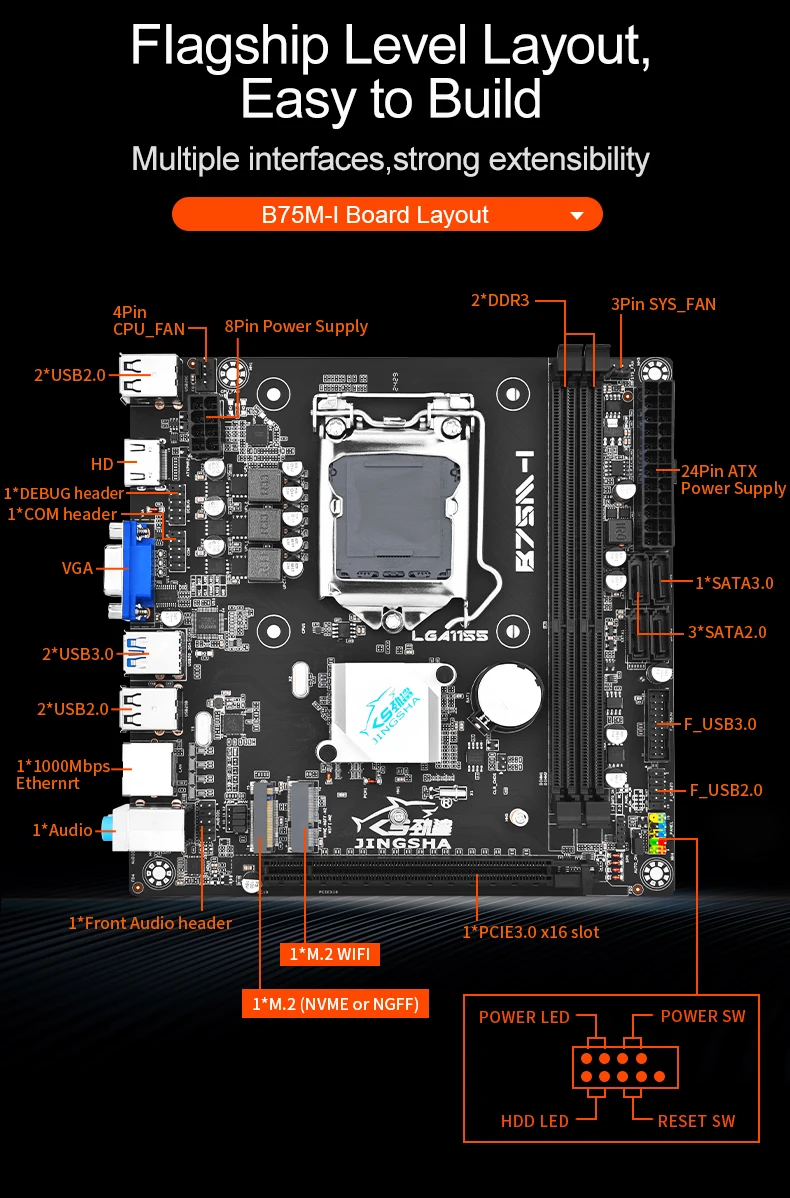

Other Onboard connectors：
1*4pin CPU Smart FAN header,
1*3Pin SYS FAN header, 1*Front Audio header,
1*USB2.0 header(for two USB2.0 ports), 1*USB3.0header(for twoUSB3.0 ports),
1*RS232 COM header, 1*Frontcontrol panel header, 1*Speaker header,
1*24pin ATX connector, 1*8pin 12V connector
Expansion slot：1*PCIE3.0x16 slot
From factor：Mini-ITX 170mm*170mm
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested by our store
Memory:
Type: DDR3 desktop Memory
Frequency: DDR3 1600MHz
Capacity: 16GB (2*8GB)
memory is used, condition good.1 year warranty

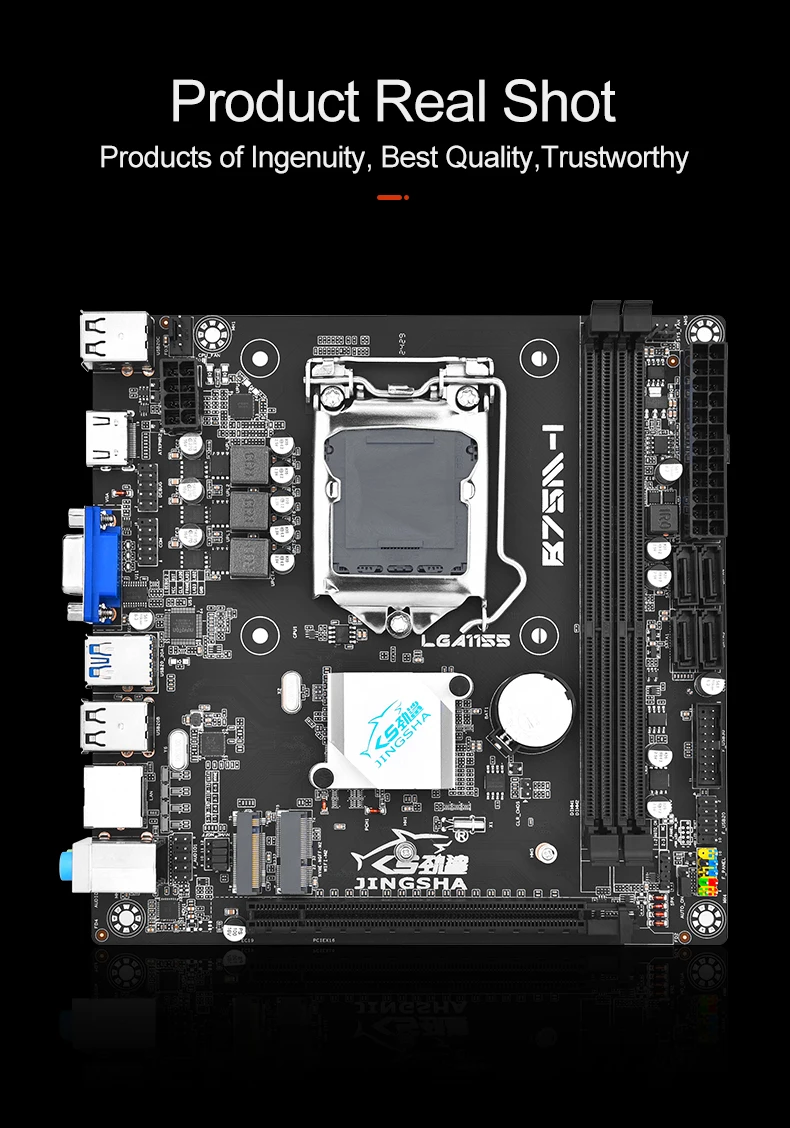

1 * B75M-I LGA 1155 Desktop Board
1*CPU Cooling Fan
1: The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is continuously optimized and upgraded.
2: Please allow 1-3mm to be different due to manual measurement.
3: Due to different monitors and different light, the picture may not show the actual color of the item. Thank you for your understanding.
4: This platform requires a powerful power supply. Please make sure that your power supply is sufficient to support the plan. (At least 500w brand power supply)
5: The battery in the motherboard photo will be removed before shipment, because it is forbidden to use the battery at the CN terminal and customization
6. If you have other requirements for the processor model and the amount of memory, you can contact us and we will make changes for you (the store provides memory, CPU, graphics card, SSD, MSATA, NVME M.2, power supply, chassis, etc. available. Provide customers with complete sets of machine accessories)
7. All motherboards can provide BIOS files and drivers, contact customer service to obtain the files
For tax issues in Brazil, please make sure that you can solve the customs clearance issues by yourself, we are not responsible for customs duties. Thank you for your understanding
If you are not satisfied with our products, please feel free to contact me without any dispute. We will do our best to satisfy you.（Due to the time difference between countries/regions, we will reply as soon as we receive the email.）
Pls read me before you make order.
-
The motherboard battery is removed before shipment as a CN pillar or customs lays a battery embargo.
Parcel ship from oversea to your country might be inspected by custom.VAT would be charged by local custom which buyer should be responsible for payment as it is the local custom policy.
We are not responsible for any wrong address
-
If the package is damaged during receipt, please take a video of the package and report it to us.
-
Due to different production batches, there may be some differences between the pictures you see and the products you get, for example, the packaging box, the color of DIMM slots, SATA ports, PCI or PCI-E slots and other ports, subject to change, Without notice. One thing for sure is that we will never compromise on product quality.
-
In description photo which show the product,is from official web.the official description photo which has been edited to show the best of the produect.can just take for reference. for detail must refer the real odject photo.
-
Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital significance to us.
-
We process and ship orders from Monday to Saturday, so we cannot provide weekend or holiday delivery.
-
We send packages to the world via Aliexpress standard
-
All orders will be processed in time，shipped within 48hours.
-
Standard Shipping , Usually 12 – 35 or 60 days to Worldwide
-
Expedited Shipping , via DHL /EMS . DHL : 3- 9 days , EMS : 7- 22 Days
QUALITY
If the product has quality problems within 15 days of receipt of the package, please provide a video proof that we
ASSURANCE
can provide a solution after confirming the problem. If this
If there is any problem during the warranty period, you need
repair to contact us first, then take the product to the repair
center for repair. If the repair center can't solve the problem,
you need return the product to the Chinese factory for repair.
NOTE：For any defective products, we have a complete warranty. If the customer gives me any negative feedback, Including the motherboard burned out during use or improper use，we will not provide after-sales service.
