SPECIFICATIONS
Brand Name: Asus
Chipset: AMD A520
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 64 GB
Processor compatibility: AMD Others
With CPU: No
Support Memory Type: DDR4
Number of PCI: 0
Storage Interface Type: SATA 3
Package: Yes
RAID Supported: YES
Application: Desktop
Chipset Manufacturer: AMD
Back I/O Ports: VGA(D-Sub)
Back I/O Ports: HDMI 1.0
PCI – E standards: PCI – E 3.0
Socket Type: AM4
Special Function: none
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Office
Usage Scenario: DESIGN
Usage Scenario: Video Production
Usage Scenario: others
Origin: Mainland China
Number of PCIe x 8: 0
Number Of Memory Slots: 2
Form Factor: CeB
Support USB Type: USB 2.0
Support USB Type: USB 3.2 Gen1
Number of PCIe x 4: 0
Number of PCIe x 16: 1
Memory channel: Double
Number of SATA Ports: 4
Launch Date: 2008
SATA RAID: 0
Quality Certification: ce
Number of PCIe x 1: 1
Certification: weee
Form Factor: Micro-ATX
Number of M.2: 1
motherboard chip
Integrated chip sound card/network card
Main Chipset AMD A520
Chipset Description Using AMD A520 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC892 7.1 channel sound chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor Specifications
CPU Type 3rd Generation AMD Ryzen Processor
CPU socket Socket AM4
Memory Specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3733/3866/4000/4133/4266/4400/4600+Mhz memory
storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
Storage interface 1×M.2 interface, 4×SATA III interface
I/O interface
USB Interface Based on Chipset:
6×USB3.2 Gen1 interface, 6×USB2.0 interface
Processor based:
4×USB3.2 Gen1 interface
Video interface 1 × HDMI interface, 1 × DVI interface
Power connector one 4-pin, one 24-pin power connector

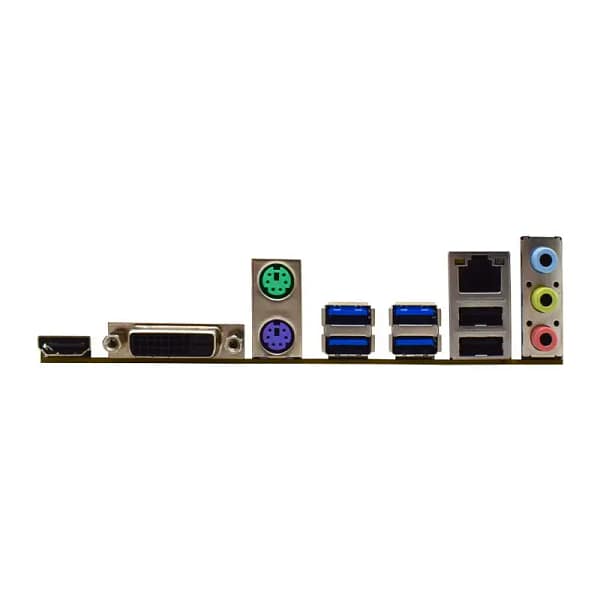

Other ports 1×PS/2 mouse port, 1×PS/2 keyboard port, 1×RJ45 network port, 3×audio port
plate type
Mainboard form factor Micro ATX form factor
Dimensions 23.6×20.0cm
