SPECIFICATIONS
Application: Computer
Color: Green
Model Number: HL-0019102901
Product Name: M.2 NGFF nvme SSD/ B+M to Mini PCI-E Adapter

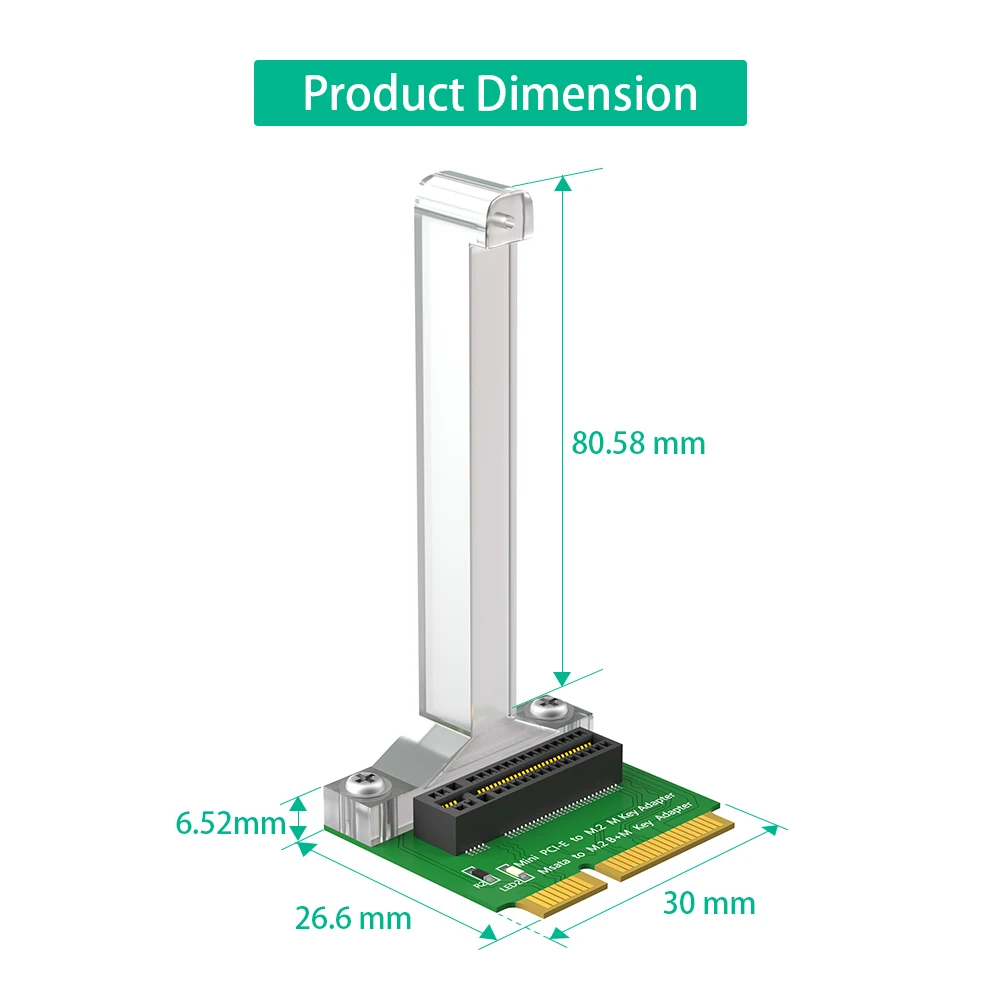

Size: 160*90*30
Type: Mini PCI-E/mSATA
brand name: BQZYX
place of origin: Guangdong, China
products status: Stock

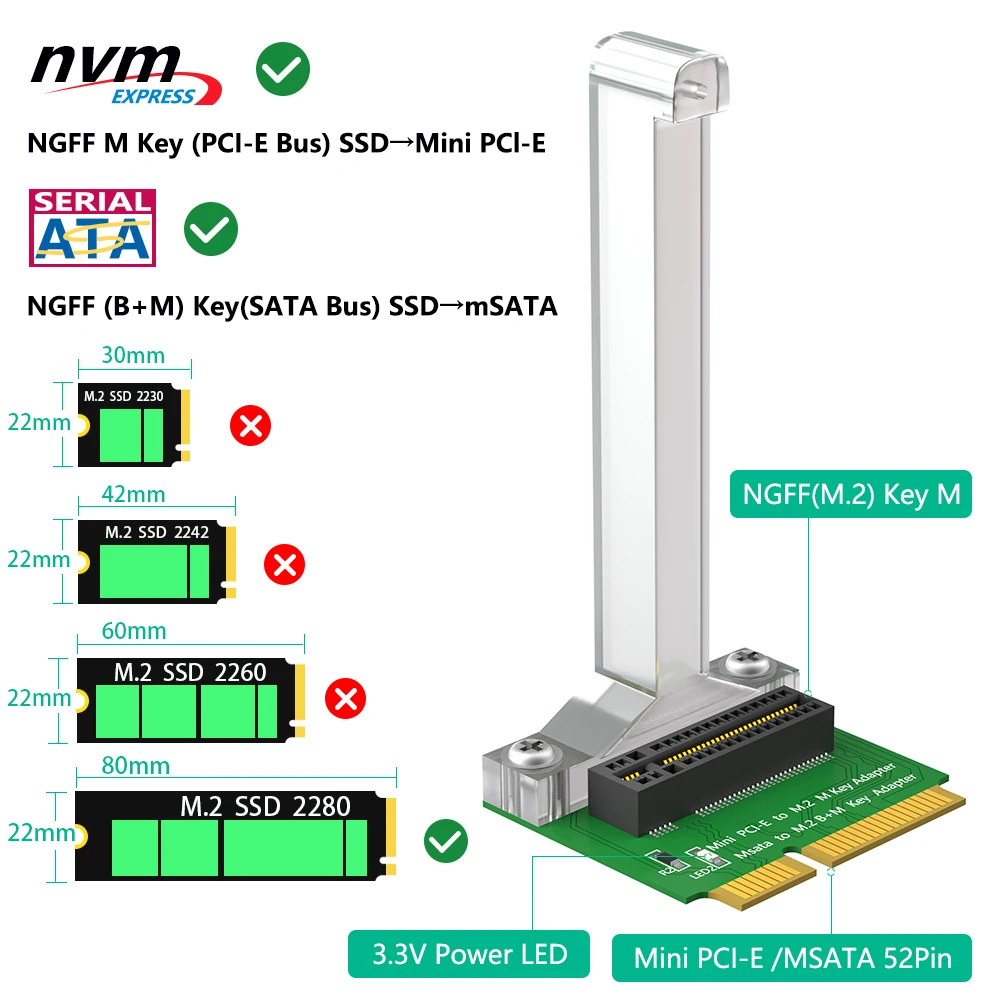

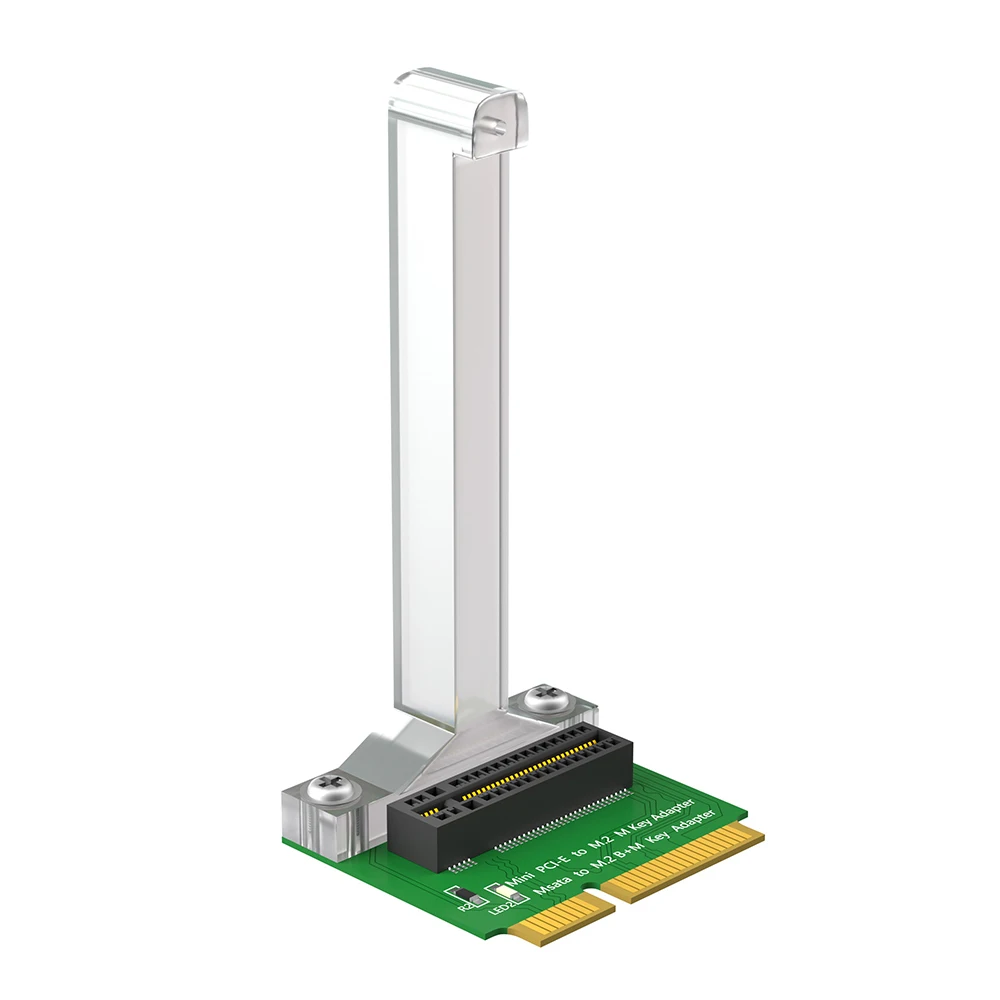

M.2 NGFF nvme SSD/ B+M key SATA bus SSD to Mini PCI-E Adapter (Vertical installation) for 2280 type SSD
Product features:
| 1 | when convert to mini PCI-E interface, only support M.2 Socket 3 PCI-e-based M Key 2280 SSD, doesn’t support M.2 SATA bus B key SSD, but speed at 1X speed only |
| 2 | when convert to Msata interface, only support M.2 SATA bus B+M key SSD,doesn’t support M.2 Socket 3 PCI-e-based M Key 2280 SSD. |
| 3 | Systerm requirement: half size (26.80x30mm) or full size (50.95x30mm) Mini PCI-e/msata slot on mainboard. |

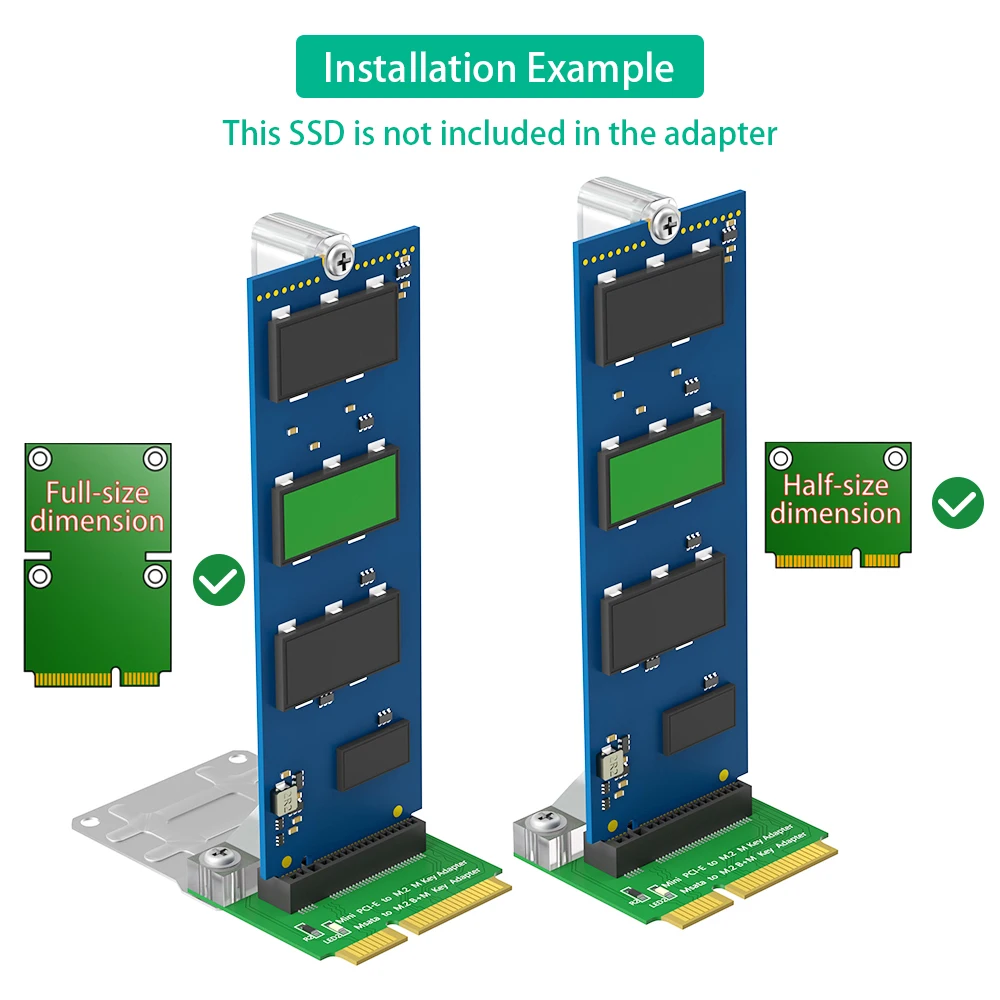

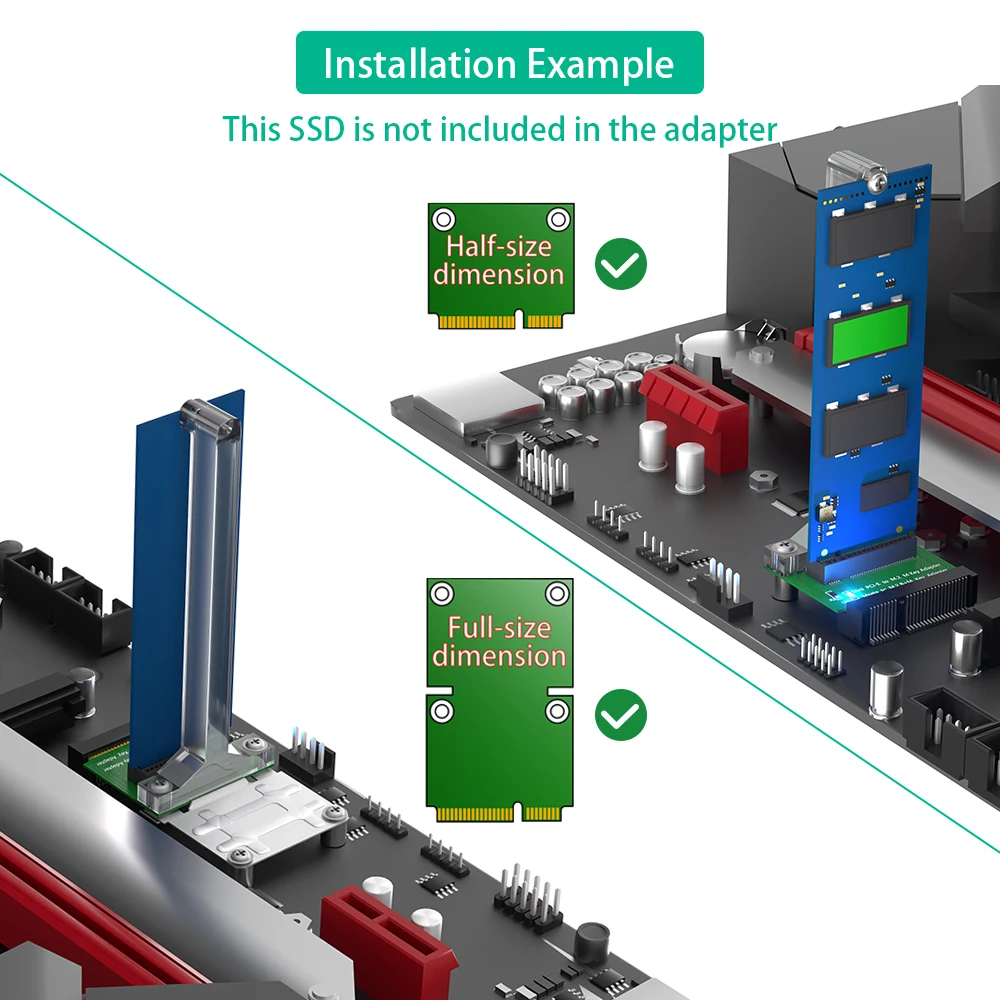

| 4 | Vertical installation and plastic support frame design: more stability and reliability. |

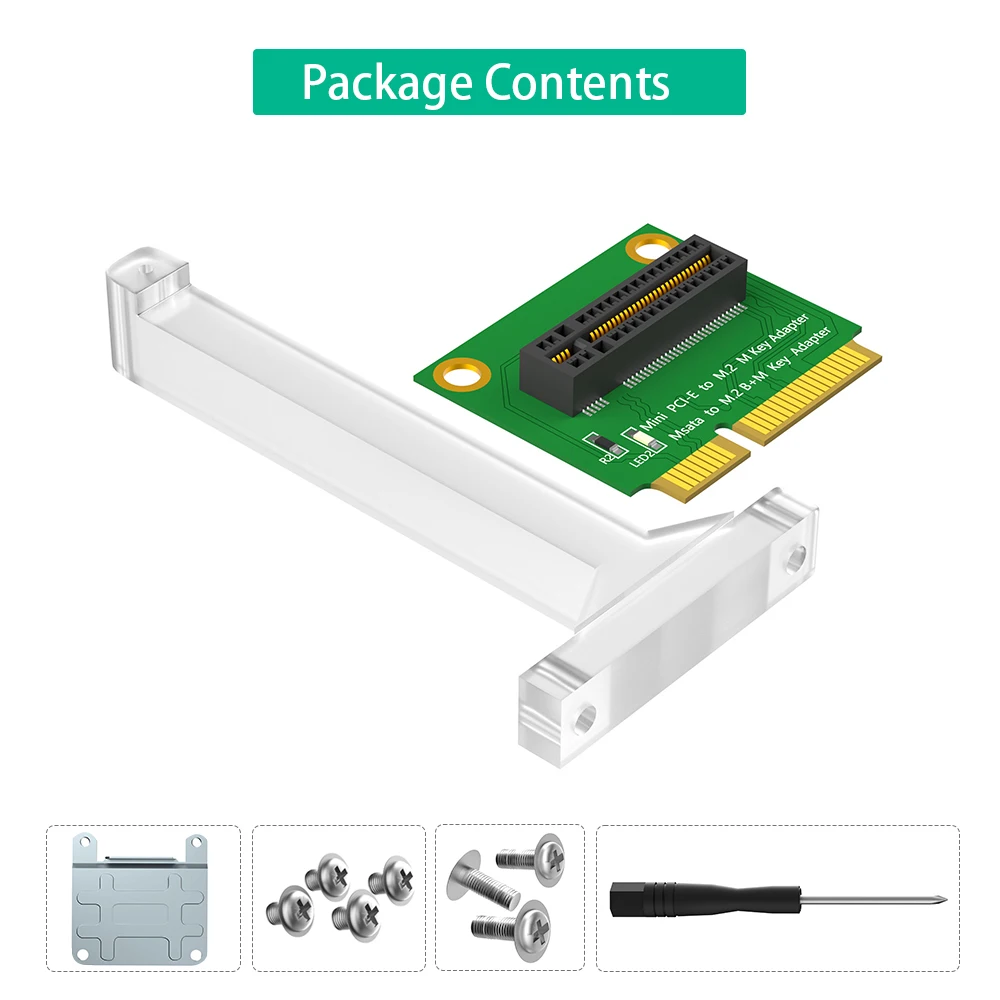

Package Content:
1xMini PCI-E(mSATA) adapter
1x Plastic support frame
1x minicard extender metal bracket
4x M2 Screw
1x screwdriver
1x manual
