SPECIFICATIONS

Blade Quantity: 9

Brand Name: Jonsbo

Choice: yes

Fan Life: 100000 hrs

Fan Size: 120mm

Fan Speed: 600 – 1500

Lines: 4 LINES

Model Number: SL-120

Noise: 23dBA

Origin: Mainland China

Package: Yes

Power Interface: 4PIN

Used For: case

Voltage: 12V

semi_Choice: yes

Description

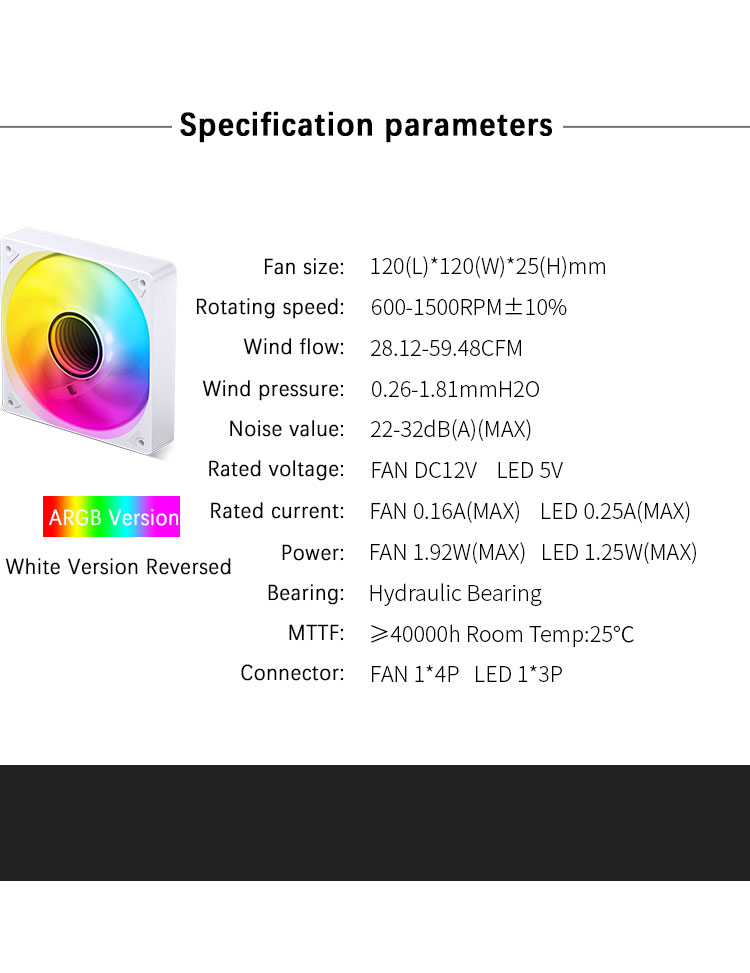

SL-120 ARGB Edition

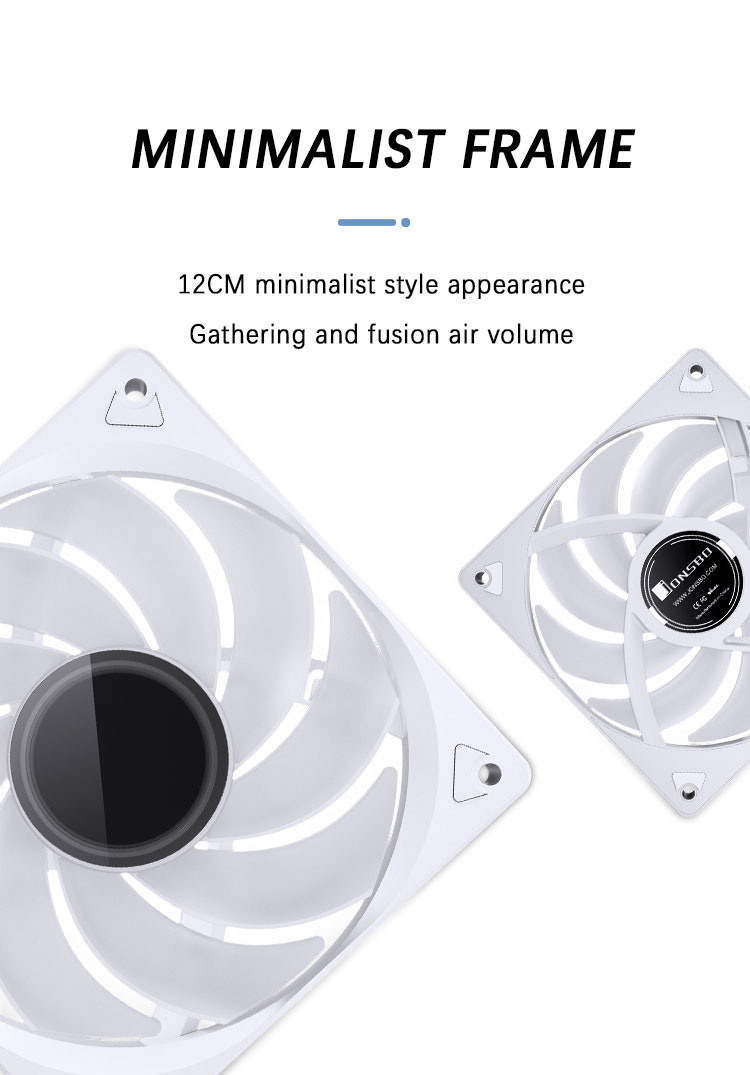

Fan size: 120mm (L) * 120mm (W) * 25mm (H)

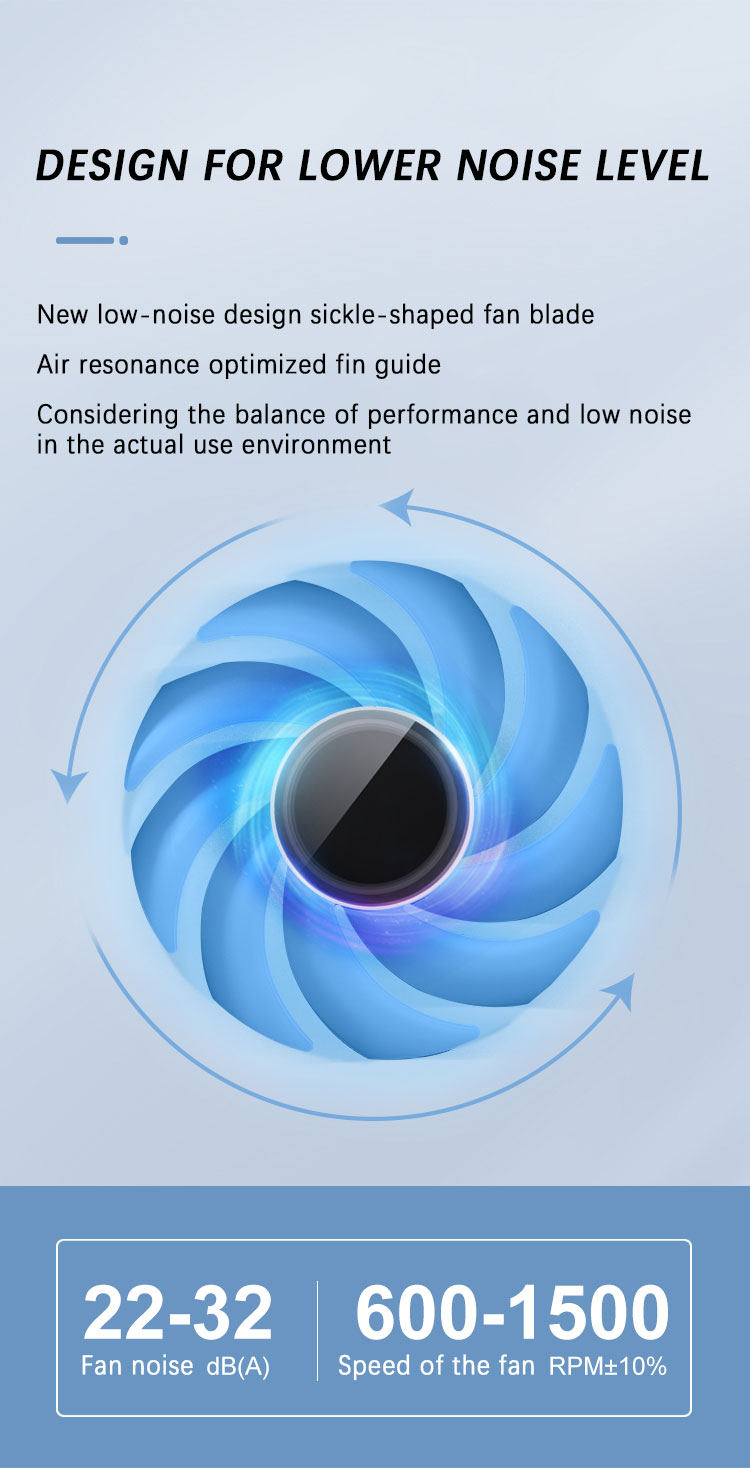

Speed: 600-1500rpm (± 10%)

Air flow rate: 28.12-59.48 CFM

Wind pressure: 0.26-1.81mm H2O

Noise value: 22-32dB (A) (MAX)

Rated voltage: FAN DC12V LED 5V

Rated current: FAN0.16A (MAX) LED 0.25A (MAX)

Power: FAN 1.92W (MAX) LED 1.25W (MAX)

Bearing: Hydraulic Bearing

MTTF: ≥ 40000h Room Temperature: 25 ℃

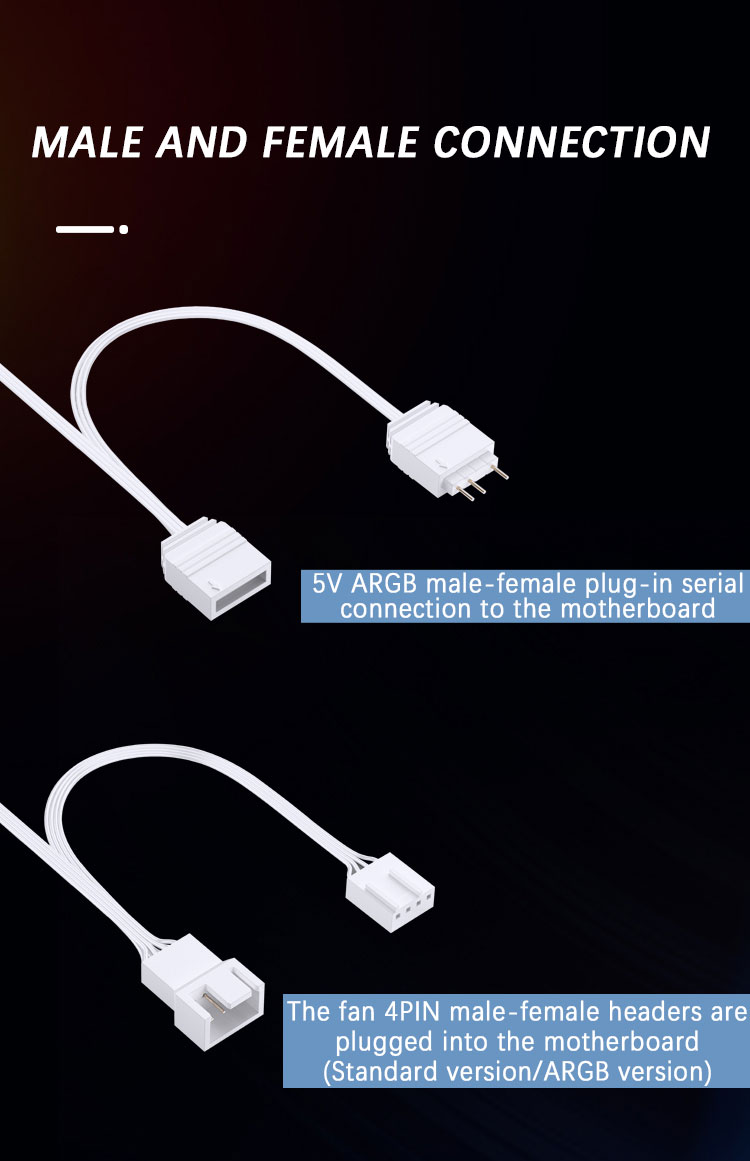

Connector: FAN 1 * 4P LED 1 * 3P

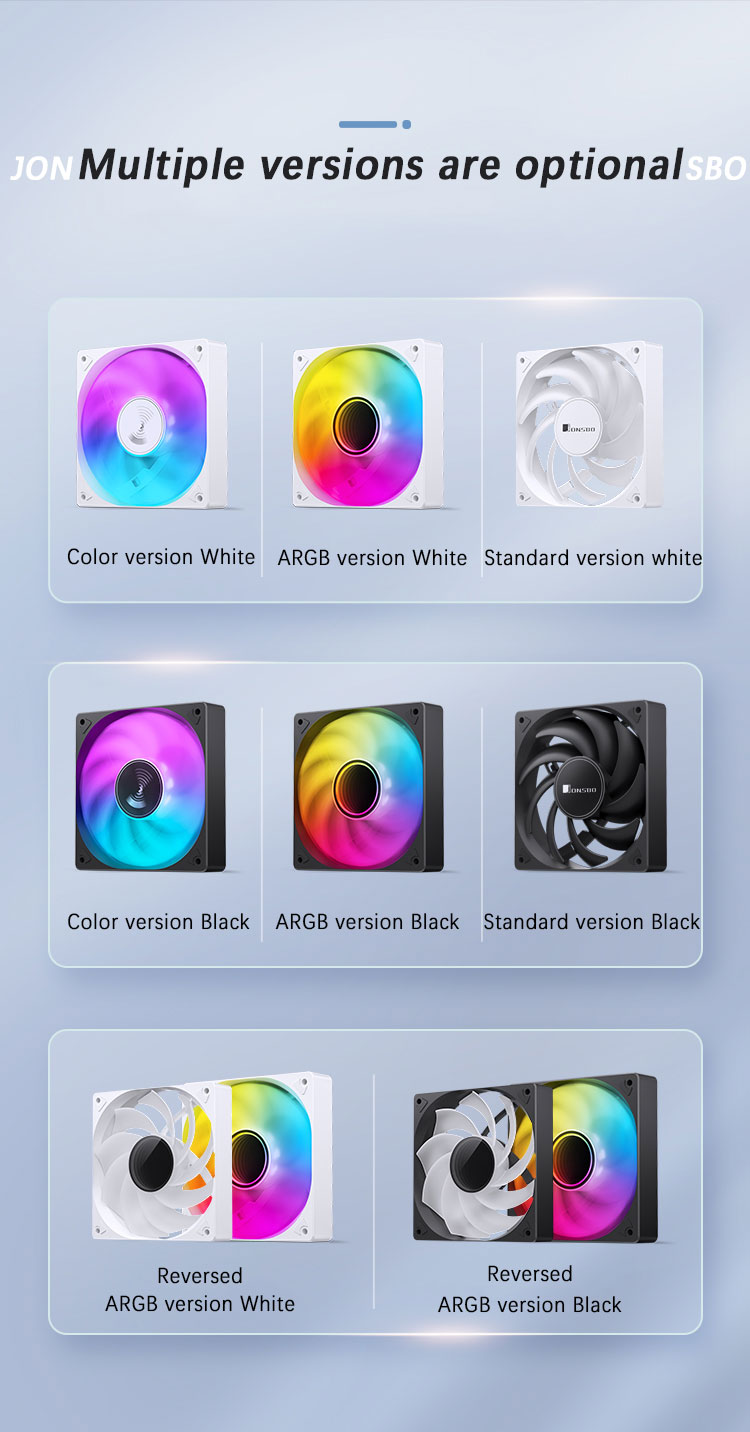

SL-120 Color Edition

Fan size: 120mm (L) * 120mm (W) * 25mm (H)

Speed: 1500rpm (± 10%)

Air flow rate: 59.48CFM

Wind pressure: 1.81mmH2O

Noise value: 32dB (A) (MAX)

Rated voltage: FAN DC12V

Rated current: FAN0.33A (MAX)

Power: FAN 3.96W (MAX)

Bearing: Hydraulic Bearing

MTTF: ≥ 40000h Room Temperature: 25 ℃

Connector: FAN 1 * 3P
